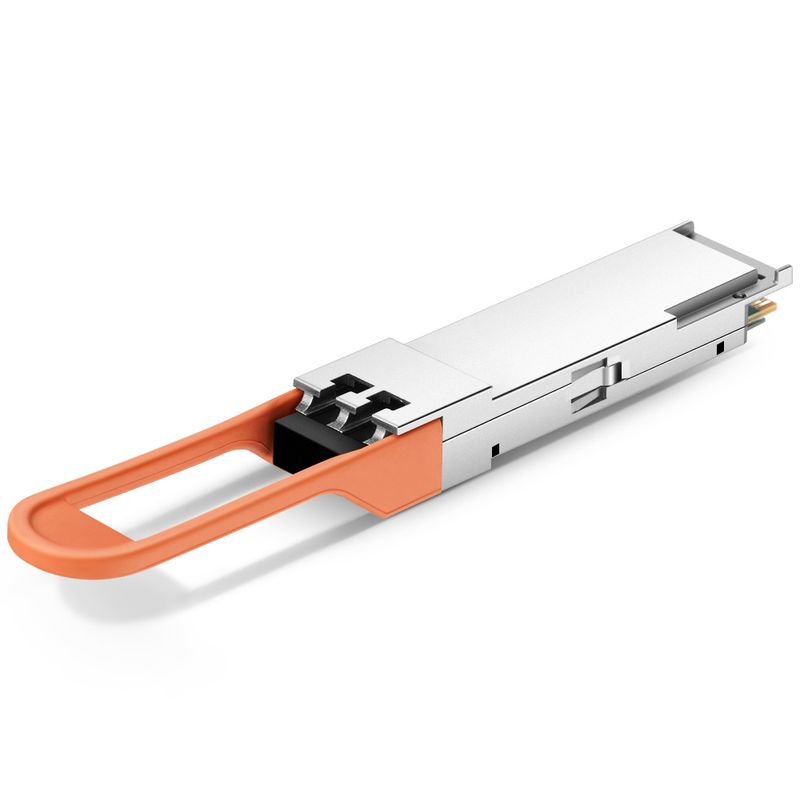

100G QSFP28 1310NM 30KM ER4
QSFP28 transceiver modules are designed for 100 Gigabit Ethernet over single mode
fiber. They are compliant with the QSFP28 MSA, 100GBASE-ER4 Lite. Digital diagnostics functions
are available via the I2C interface, as specified by the QSFP28 MSA.
QSFP28 transceivers are compliant with RoHS.
Product Features
Standard Compliance & Certifications
Compliant with 100G Ethernet ER4 Lite
Compliant with QSFP28 MSA
Class 1 laser safety certified
RoHS Compliant
Optical Components
4 cooled 25Gb/s channels LAN WDM EML TOSA
4 channels APD photo detector
Duplex LC connector
Electrical & Power
Single +3.3V power supply
Power consumption less than 4.5W
Transmission
Up to 30km on SMF without FEC / 40km with FEC
Operating Temperature Options
Commercial operating temperature: 0°C to +70°C
Applications
- 100GBASE-ER4 Ethernet links
- Data center
Information Form
| Part Number | Transmitter | Output Power | Receiver | Sensitivity | Reach | Temp | DDM | RoHS |
|---|---|---|---|---|---|---|---|---|
| QOT-ER4-100G-1310-30KM | LWDM EML | -2.9~ +2.9dBm | APD | < -15.0dBm | 30km | 0~ 70 °C | Available | Compliant |
